For this model of controller, we applies with micro-computer for controlling, and installs with KV preset, automatic aging, failure self-checking, timing&untime setting(the range of fixed time is 1-98 minutes), running status displaying, safety interlock, protect functions for whole system.
In this type of control unit also includes controlling for all running of mechanical transmission system and three changeable controlling of radiography system, optical shutter door’s controlling.

Real time radiography system:

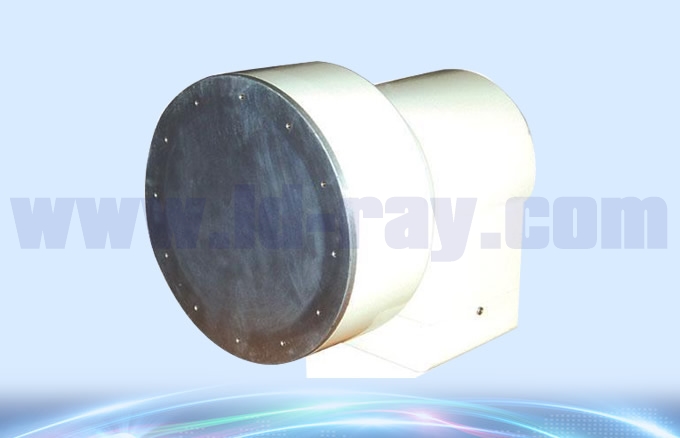

6inches image intensifier:

Input image dimension:150mm
Output image dimension:20mm
Center limited resolution:54lp/cm

CCD camera system:

Configuration: parallel light lens, changeable lens, CCD camera, power supply, transmission cable
Parameters:
Analog CCD camera:
Pixel: 752×582
Current: +12V
Transmission cable: ≤60m
Dynamic range: 8bit
Digital CCD camera:
Pixel: 1024×1024
Current: +12V
Transmission cable: ≤15m
Dynamic range: 10-12bit

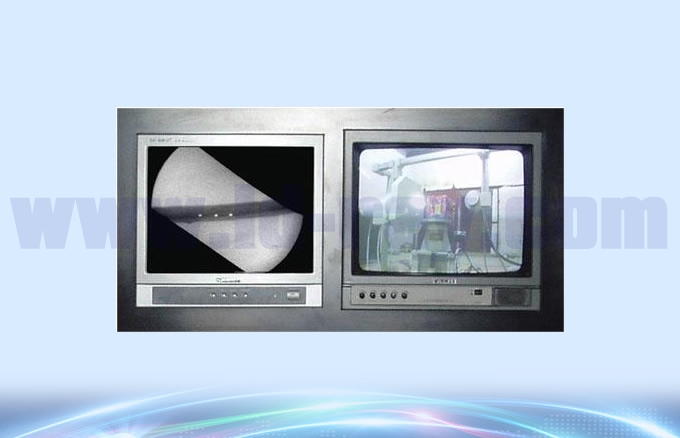

Monitor:

14″monitor: 1000line
17″monitor: 1000line
Computer image processing system:
Configuration:
Industrial controlling computer(brand unit)
Monitor
Image collect board
Netcard
Expend USB interface
Laser printer
Image processing software
Disc-driving machine

For hardware configuration, we applies with newest devices in the market, and except three months guarantee for disc-driving machine, for other parts we provides one year guarantee.
Technical targets:
Standard PAL,NTSC black-white vedio signal inputting;
Collect speed: 25frame/s for PAL; 30frame/s for NTSC
Max resolution of image collection: PAL---768×576;NTSC---640×480;
Software such as lightness, contrast ratio can be adjust continuously;
Statistic sensitivity≥2%, dynamic sensitivity≥4%.

Image processing software functions:
Image processing center: lightness, contrast ratio adjustable, high sensitivity, low noise images.
Image real time collection: operator can view inspection results on screen directly.
Image saving: can save the acquired images in a disc for future checking.
Image superimposition: mutilframe’s superimposition and noise-reduction.
Image zooming: can do enlarging and reduction of collected images.
Image processing: in statistic inspection, system have typical functions such as noise-reduction, image intensifing, fake color, negative image, failure dimension’s measuring, image saving and checking, form printing and so on; in dynamic system, it carries out some advantages like real time negative image, real time fake color, real time sharp, dynamic real time saving and repeat funtions, it not only have high statistic sensitivity, dynamic intelligentable, convenient operation, but also has chinese interface, and for menu, it applies with dropdown and quickie mode which is much more easy for using.
